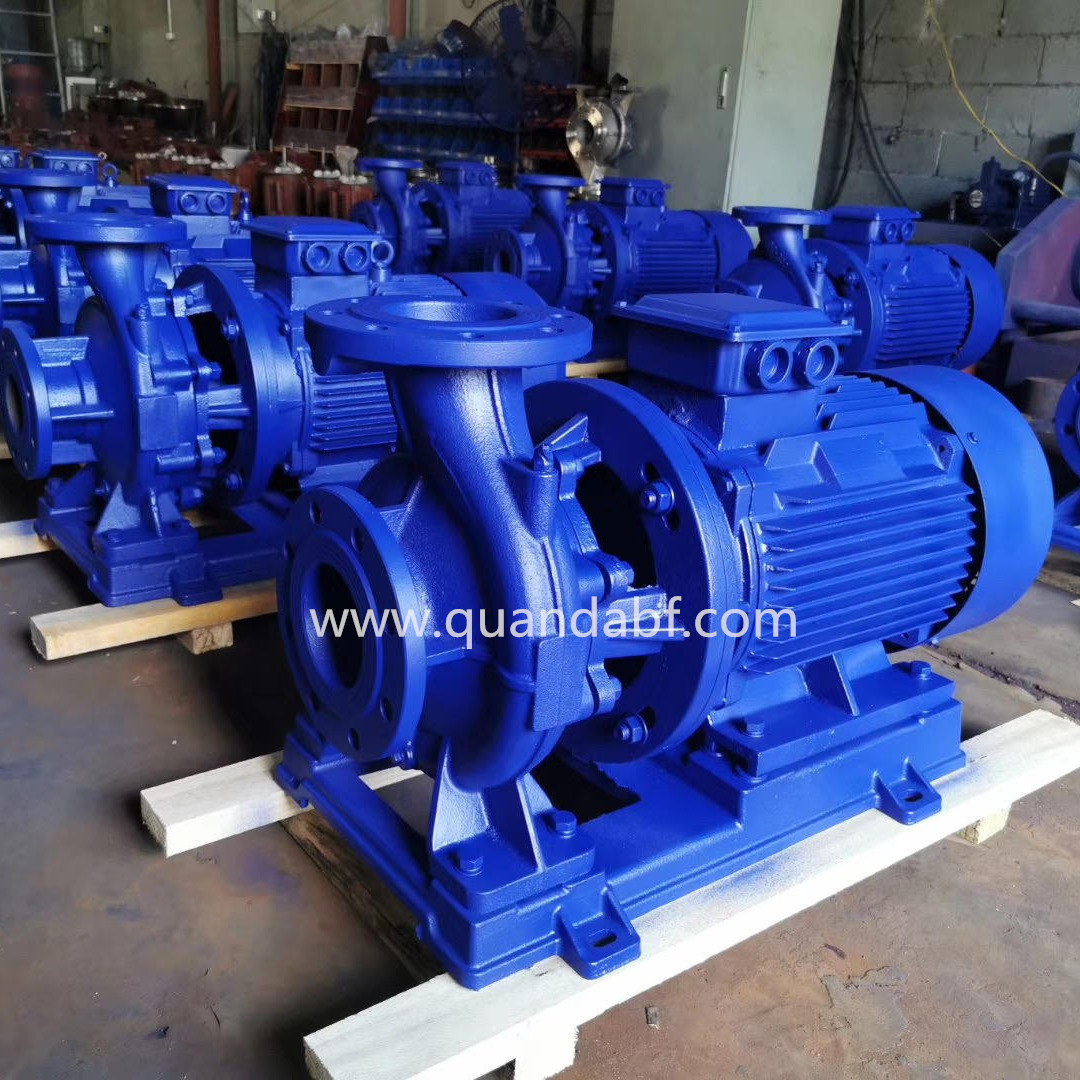

ISWR臥式熱水離心泵概述:
該款離心泵為臥式結構,設計結構緊湊,是在原有臥式離心泵基礎上,改進了聯軸器的設計,而形成的一款直連式無聯軸器的臥式離心泵。此款泵在使用率上較高,通常使用在鍋爐熱水循環,暖氣循環等介質溫度低于120℃的場合。
ISWR臥式熱水離心泵主要特點
運行平穩:泵軸的絕對同心度及葉輪優異的動靜平衡,保證平穩運行,絕無振動。
滴水不漏:不同材質的硬質合金密封,保證了不同介質輸送均無泄漏。
噪音低:兩個低噪音的軸承支撐下的水泵,運轉平穩,除電機微弱聲響,基本無噪音。
故障率低:結構簡單合理,關鍵部分采用國際一流品質配套,整機無故障工作時間大大提高。
維修方便:更換密封、軸承、簡易方便。
占地更省:出口可向左、向右、向上三個方向,便管道布置安裝,節省空間。
ISWR臥式熱水離心泵主要用途
1、ISW臥式管道離心泵供輸送清水及物理化學性質類似于清水的其它液體之用,適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套,使用溫度t≤80℃。
2、ISWR臥式熱水管道泵廣泛適用于:冶金、化工、紡織、造紙以及賓館飯店等鍋爐熱水增壓循環輸送及城市采暖系統,iswr型使用溫度t≤120℃。
3、ISWH臥式不銹鋼管道離心泵,供輸送不含固體顆粒,具有腐蝕性、粘度類似于水的液體,適用于石油、化工、冶金、電力、造紙、食品制藥和合成纖維等部門,使用溫度為-20℃~+120℃。
4、ISWB防爆臥式管道離心泵供輸送汽油、煤油、柴油等油類產品或易燃、易爆液體,被輸送介質溫度為-20~ +120℃。
安裝配件及方式
隔振器安裝尺寸 SD型隔振墊0.5基本尺寸
ISWR臥式熱水離心泵安裝方式
1.剛性安裝
11KW以上時,隔振器與基礎可鉆膨脹螺栓相聯。說明:7.5KW以下水泵可配隔振墊直接安裝在基礎上。
2.柔性安裝
結構簡圖:
型號意義:
性能參數表:
型號
|
流量
|
揚程
m
|
效率
%
|
轉速
r/min
|
電機
功率
kw
|
汽蝕
余量
m
|
重量
kg
|
m3/h
|
l/s
|
ISWR15-80
|
1.1
1.5
2.0
|
0.3
0.42
0.55
|
8.5
8
7
|
26
34
34
|
2900
|
0.18
|
2.3
|
17
|
ISWR20-110
|
1.8
2.5
3.3
|
0.50
0.69
0.91
|
16
15
13.5
|
25
34
35
|
2900
|
0.37
|
2.3
|
25
|
ISWR20-160
|
1.8
2.5
3.3
|
0.50
0.69
0.91
|
33
32
30
|
19
25
23
|
2900
|
0.75
|
2.3
|
29
|
ISWR25-110
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
16
15
13.5
|
34
42
41
|
2900
|
0.55
|
2.3
|
26
|
ISWR25-125
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
20.6
20
18
|
28
36
35
|
2900
|
0.75
|
2.3
|
28
|
ISWR25-125A
|
2.5
3.6
4.6
|
0.69
1.0
1.28
|
17
16
14.4
|
35
35
35
|
2900
|
0.55
|
2.3
|
27
|
ISWR25-160
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
33
32
30
|
24
32
33
|
2900
|
1.5
|
2.3
|
39
|
ISWR25-160A
|
2.6
3.7
4.9
|
0.12
1.03
1.36
|
29
28
26
|
31
31
31
|
2900
|
1.1
|
2.3
|
34
|
ISWR32-100I
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.75
|
2.0
|
32
|
ISWR32-125
|
3.5
5.0
6.5
|
0.97
1.39
1.8
|
22
20
18
|
40
44
42
|
2900
|
0.75
|
2.3
|
28
|
ISWR32-125A
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
17.6
16
14.4
|
43
43
43
|
2900
|
0.55
|
2.3
|
28
|
ISWR32-160
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
33
32
30
|
34
40
42
|
2900
|
1.5
|
2.3
|
28
|
ISWR32-160I
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
33.2
32
30.2
|
34
40
42
|
2900
|
2.2
|
2.0
|
47
|
ISWR32-200
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
51
50
48
|
28
35
37
|
2900
|
3
|
2.0
|
47
|
ISWR32-200I
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
50.5
50
48
|
26
33
35
|
2900
|
4
|
2.0
|
43
|
ISWR32-200IA
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
44.6
44
42.7
|
34
40
42
|
2900
|
2.2
|
2.0
|
74
|
ISWR40-100
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.55
|
2.3
|
32
|
ISWR40-100A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
10.6
10
9
|
52
52
52
|
2900
|
0.37
|
2.3
|
32
|
ISWR40-125
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
21
20
18
|
41
46
43
|
2900
|
1.1
|
2.3
|
34
|
ISWR40-125A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
17.6
16
14.4
|
40
45
41
|
2900
|
0.75
|
2.3
|
33
|
ISWR40-160
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
33
32
30
|
35
40
40
|
2900
|
2.2
|
2.3
|
47
|
ISWR40-160A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
29
28
26.3
|
34
39
39
|
2900
|
1.5
|
2.3
|
43
|
ISWR40-160B
|
3.8
5.5
7.2
|
1.06
1.53
2.0
|
25.5
24
22.5
|
34
38
37
|
2900
|
1.1
|
2.3
|
38
|
ISWR40-200
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
51
50
48
|
26
33
32
|
2900
|
4
|
2.3
|
74
|
ISWR40-200A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
45
44
42
|
26
31
30
|
2900
|
3
|
2.3
|
62
|
ISWR40-200B
|
3.7
5.3
7.0
|
1.03
1.47
1.94
|
38
36
34.5
|
29
29
29
|
2900
|
2.2
|
2.3
|
52
|
ISWR40-250
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
82
80
74
|
24
28
28
|
2900
|
7.5
|
2.3
|
105
|
ISWR40-250A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
72
70
65
|
24
28
27
|
2900
|
5.5
|
2.3
|
98
|
ISWR40-250B
|
3.8
5.5
7.0
|
1.06
1.53
1.94
|
61.5
60
56
|
23
27
26
|
2900
|
4
|
2.3
|
77
|
ISWR40-100I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.2
12.5
11.3
|
55 62 60
|
2900
|
1.1
|
2.3
|
34
|
ISWR40-100IA
|
8
11
14.5
|
2.22
3.05
4.03
|
10.6
10
9
|
60
60
60
|
2900
|
0.75
|
2.3
|
32
|
ISWR40-125I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.2
20
17.8
|
49
58
57
|
2900
|
1.5
|
2.3
|
38
|
ISWR40-125IA
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
57
57
|
2900
|
1.1
|
2.3
|
33
|
ISWR40-160I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
2.3
|
56
|
ISWR40-160IA
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
2.3
|
47
|
ISWR40-160IB
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
50
50
|
2900
|
1.5
|
2.3
|
43
|
ISWR40-200I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
51.2
50
48
|
38
46
46
|
2900
|
5.5
|
2.3
|
85
|
ISWR40-200IA
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45
44
42
|
37
45
45
|
2900
|
4
|
2.3
|
75
|
ISWR40-200IB
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
44
44
|
2900
|
3
|
2.3
|
63
|
ISWR40-250I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
81.2
80
77.5
|
31
38
40
|
2900
|
11
|
2.3
|
145
|
ISWR40-250IA
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71
70
68
|
38
38
38
|
2900
|
7.5
|
2.3
|
95
|
ISWR40-250IB
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
37
37
|
2900
|
7.5
|
2.3
|
94
|
ISWR40-250IC
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
36
36
|
2900
|
5.5
|
2.3
|
88
|
ISWR50-100
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.6
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
2.3
|
36
|
ISWR50-100A
|
8
11
14.5
|
2.22
3.05
4.03
|
11
10
9
|
60
60
60
|
2900
|
0.75
|
2.3
|
35
|
ISWR50-125
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.5
20
17.8
|
49
58
57
|
2900
|
1.5
|
2.3
|
43
|
ISWR50-125A
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
57
57
|
2900
|
1.1
|
2.3
|
38
|
ISWR50-160
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
2.3
|
59
|
ISWR50-160A
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
2.3
|
51
|
ISWR50-160B
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
50
50
|
2900
|
1.5
|
2.3
|
47
|
ISWR50-200
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
52
50
48
|
38
46
46
|
2900
|
5.5
|
2.3
|
101
|
ISWR50-200A
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.8
44
42
|
37
45
45
|
2900
|
4
|
2.3
|
80
|
ISWR50-200B
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
44
44
|
2900
|
3
|
2.3
|
68
|
ISWR50-250
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
82
80
77.5
|
29
38
40
|
2900
|
11
|
2.3
|
160
|
ISWR50-250A
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.5
70
68
|
38
38
38
|
2900
|
7.5
|
2.3
|
115
|
|
|
ISWR50-250B
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
37
37
|
2900
|
7.5
|
2.3
|
114
|
ISWR50-250C
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
36
36
|
2900
|
5.5
|
2.3
|
108
|
ISWR50-100I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
2.5
|
41
|
ISWR50-100IA
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
2.5
|
36
|
ISWR50-125I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
2.5
|
56
|
ISWR50-125IA
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
13.6
|
58
66
65
|
2900
|
2.2
|
2.5
|
48
|
ISWR50-160I
|
17.5
25
32.5
|
4.68
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
2.5
|
72
|
ISWR50-160IA
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
4
|
2.5
|
71
|
ISWR50-160IB
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
58
58
58
|
2900
|
3
|
2.5
|
59
|
ISWR50-200I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
2.5
|
108
|
ISWR50-200IA
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
7.5
|
2.5
|
107
|
ISWR50-200IB
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
55
55
|
2900
|
5.5
|
2.5
|
100
|
ISWR50-250I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
2.5
|
175
|
ISWR50-250IA
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
2.5
|
165
|
ISWR50-250IB
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
11
|
2.5
|
165
|
ISWR50-315I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
128
125
122
|
30
40
44
|
2900
|
30
|
2.5
|
310
|
ISWR50-315IA
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
30
40
44
|
2900
|
22
|
2.5
|
245
|
ISWR50-315IB
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
39
39
|
2900
|
18.5
|
2.5
|
215
|
ISWR50-315IC
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
38
38
|
2900
|
15
|
2.5
|
195
|
ISWR65-100
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
2.5
|
46
|
ISWR65-100A
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
2.5
|
41
|
ISWR65-125
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
2.5
|
58
|
ISWR65-125A
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
14.4
|
58
66
65
|
2900
|
2.2
|
2.5
|
49
|
ISWR65-160
|
17.5
25
32.5
|
4.86
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
2.5
|
75
|
ISWR65-160A
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
4
|
2.5
|
75
|
ISWR65-160B
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
2900
|
3
|
2.5
|
63
|
|
ISWR65-200
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
2.5
|
107
|
ISWR65-200A
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
7.5
|
2.5
|
107
|
ISWR65-200B
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
55
55
|
2900
|
5.5
|
2.5
|
100
|
ISWR65-250
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
2.5
|
180
|
ISWR65-250A
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
2.5
|
170
|
ISWR65-250B
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
11
|
2.5
|
170
|
ISWR65-315
|
17.5
25
32.5
|
4.86
6.94
9.03
|
127
125
122
|
32
40
44
|
2900
|
30
|
2.5
|
320
|
ISWR65-315A
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
32
40
44
|
2900
|
22
|
2.5
|
255
|
ISWR65-315B
|
15.7
22.5
29.2
|
103
101
98
|
39
39
39
|
2900
|
18.5
|
2.5
|
225
|
|
ISWR65-315C
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
38
38
|
2900
|
15
|
2.5
|
205
|
ISWR65-100I
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
3.0
|
63
|
ISWR65-100IA
|
31.3
44.7
58
|
8.7
12.4
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
3.0
|
53
|
ISWR65-125I
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
3.0
|
99
|
ISWR65-125IA
|
31.3
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
3.0
|
78
|
ISWR65-160I
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
3.0
|
103
|
ISWR65-160IA
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
7.5
|
3.0
|
103
|
ISWR65-160IB
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
69
69
|
2900
|
5.5
|
3.0
|
97
|
ISWR65-200I
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
3.0
|
176
|
ISWR65-200IA
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
3.0
|
166
|
ISWR65-200IB
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
65
65
|
2900
|
7.5
|
3.0
|
114
|
ISWR65-250I
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
3.0
|
235
|
ISWR65-250IA
|
32.5
46.7
61
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
3.0
|
205
|
ISWR65-250IB
|
30
43.3
56
|
8.3
12.0
15.6
|
62
60
54
|
58
58
58
|
2900
|
15
|
3.0
|
180
|
ISWR65-315I
|
35
50
65
|
9.72
13.9
18.1
|
128
125
121
|
44
54
57
|
2900
|
37
|
3.0
|
350
|
ISWR65-315IA
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
106.4
|
43
54
57
|
2900
|
30
|
3.0
|
335
|
ISWR65-315IB
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
53
53
|
2900
|
30
|
3.0
|
335
|
|
ISWR100-315A
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
65
66
67
|
2900
|
55
|
4.0
|
549
|
ISWR100-315B
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
65
65
|
2900
|
45
|
4.0
|
439
|
ISWR100-315C
|
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
63
63
63
|
2900
|
37
|
4.0
|
385
|
ISWR100-350
|
60
100
120
|
16.7
27.8
33.3
|
153.6
150
142
|
72
57
74
|
2900
|
90
|
4.0
|
950
|
ISWR100-350A
|
61
87
113
|
16.9
24.2
31.4
|
145.6
142
134
|
75
75
75
|
2900
|
75
|
4.0
|
830
|
ISWR100-350B
|
58
82
107
|
16.1
22.8
29.7
|
138.6
135
127
|
75
75
75
|
2900
|
55
|
4.0
|
600
|
ISWR100-100I
|
96
160
192
|
26.7
44.4
53.3
|
14
12.5
10
|
64
73
70
|
2900
|
11
|
4.5
|
115
|
ISWR100-125I
|
96
160
192
|
26.7
44.4
53.3
|
24
20
14
|
62
74
69
|
2900
|
15
|
4.5
|
168
|
ISWR100-125IA
|
84
140
168
|
23.3
39
46.7
|
20
17
12
|
64
72
69
|
2900
|
11
|
4.5
|
168
|
ISWR100-160I
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
69
79
75
|
2900
|
22
|
5.6
|
210
|
ISWR100-160IA
|
84
140
168
|
23.3
39
46.7
|
32
28
23.5
|
66
76
72
|
2900
|
18.5
|
5.0
|
210
|
ISWR100-200I
|
96
160
192
|
26.7
44.4
53.3
|
53
50
45
|
69
79
78
|
2900
|
37
|
5.2
|
402
|
ISWR100-200IA
|
84
140
168
|
23.3
39
46.7
|
48
45
40
|
64
74
73
|
2900
|
30
|
4.5
|
395
|
ISWR100-200IB
|
60
100
120
|
16.7
27.8
33.3
|
43
40
36
|
72
72
72
|
2900
|
22
|
4.5
|
360
|
ISWR100-250I
|
96
160
192
|
26.7
44.4
53.3
|
83
80
72
|
65
77
74
|
2900
|
55
|
4.8
|
560
|
ISWR100-250IA
|
84
140
168
|
23.3
39
46.7
|
75
72
65
|
60
72
69
|
2900
|
45
|
4.5
|
420
|
ISWR100-250IB
|
60
100
120
|
16.7
27.8
33.3
|
68
65
58
|
70
70
70
|
2900
|
37
|
4.5
|
400
|
ISWR125-100
|
96
160
192
|
26.7
44.4
53.3
|
13
12.5
12
|
82
82
82
|
2900
|
11
|
4.0
|
180
|
ISWR125-100A
|
86
143
172
|
23.9
39.7
47.8
|
10.4
10
9.6
|
77
77
77
|
290
|
7.5
|
4.0
|
125
|
ISWR125-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
20
17
|
80
80
80
|
2900
|
15
|
4.0
|
220
|
ISWR125-125A
|
86
143
172
|
23.9
39.7
47.8
|
18
16
13.6
|
77
77
77
|
2900
|
11
|
4.0
|
210
|
ISWR125-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
28
|
78
78
&, nbsp; 78
|
2900
|
22
|
4.0
|
265
|
ISWR125-160A
|
90
150
180
|
25
41
750
|
31.5
28
24.5
|
76
76
76
|
2900
|
18.5
|
4.0
|
230
|
ISWR125-160B
|
83
138
166
|
21.7
38.3
46.1
|
27
24
21
|
73
73
73
|
2900
|
15
|
4.0
|
215
|
ISWR125-200
|
96
160
192
|
26.7
44.4
53.3
|
55
50
46
|
77
77
77
|
2900
|
37
|
5.5
|
395
|
ISWR125-200B
|
83
138
166
|
21.7
38.3
46.1
|
41.3
37.4
34.5
|
75
75
75
|
2900
|
22
|
5.5
|
320
|
ISWR125-250
|
96
160
192
|
24.7
44.7
53.3
|
87
80
73
|
75
75
75
|
2900
|
55
|
5.0
|
580
|
ISWR125-250A
|
90
150
180
|
25
41.7
50
|
76
70
84
|
74
74
74
|
2900
|
45
|
5.5
|
490
|
ISWR125-250B
|
83
138
166
|
21.7
38.3
46.1
|
65
60
55
|
73
73
73
|
2900
|
37
|
5.5
|
430
|
ISWR125-215
|
96
160
192
|
26.7
44.7
53.3
|
133
125
119
|
70
70
70
|
2900
|
90
|
5.0
|
790
|
ISWR125-315A
|
90
150
180
|
25
41.7
50
|
117
110
104.6
|
70
70
70
|
2900
|
75
|
5.0
|
710
|
ISWR125-315B
|
86
143
172
|
23.9
39.7
47.8
|
106.4
100
95.2
|
69
69
69
|
2900
|
75
|
5.0
|
705
|
ISWR125-315C
|
80.5
134
161
|
22.4
37.2
44.7
|
96
88
86
|
67
67
67
|
2900
|
55
|
5.0
|
585
|
ISWR150-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
24
17
|
66
76
76
|
2900
|
11
|
4.0
|
210
|
ISWR150-125A
|
90
150
180
|
25
41.7
50
|
18
16
13.6
|
77
77
77
|
2900
|
7.5
|
4.0
|
130
|
ISWR150-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
75
75
75
|
2900
|
22
|
4.0
|
270
|
ISWR150-160A
|
90
150
180
|
25
41.7
50
|
32
28
23.5
|
76
76
76
|
2900
|
18.5
|
4.0
|
230
|
ISWR150-160B
|
84
141
168
|
23.3
39
46.7
|
27
24
21
|
73
73
73
|
2900
|
15
|
4.0
|
220
|
ISWR150-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
3.0
|
265
|
ISWR150-200A
|
125
176
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
3.0
|
244
|
ISWR150-200B
|
84
440
168
|
23.3
39
46.7
|
41
38
34
|
75
75
75
|
2900
|
22
|
4.0
|
275
|
ISWR150-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
3.0
|
300
|
ISWR150-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
3.0
|
262
|
ISWR150-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
76
76
|
1450
|
11
|
3.0
|
241
|
ISWR150-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
73
|
1450
|
30
|
2.5
|
410
|
ISWR150-315A
|
131
187
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
3.5
|
335
|
ISWR150-315B
|
121
173
225
|
33.5
48.1
62.5
|
25
24
21
|
76
76
76
|
1450
|
18.5
|
3.5
|
315
|
ISWR150-350
|
96
160
192
|
26.7
44.4
53.3
|
153.6
150
142.8
|
80
80
80
|
2900
|
110
|
5.5
|
970
|
ISWR150-350A
|
90
150
180
|
25
41.7
50
|
145.6
142
134.8
|
70
70
70
|
2900
|
90
|
5.2
|
790
|
ISWR150-350B
|
84
140
168
|
23.3
39
46.7
|
138.6
35
127.8
|
65
76
74
|
2900
|
75
|
5.5
|
705
|
ISWR150-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
3.5
|
490
|
|
|
ISWR150-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.4
44
38.3
|
67
74
70
|
1450
|
37
|
3.5
|
454
|
ISWR150-400B
|
122
174
226.5
|
33.9
48.3
62.9
|
40
38
33
|
73
73
73
|
1450
|
60
|
3.5
|
435
|
ISWR150-400C
|
112
160
208
|
31.1
44.4
57.8
|
34
32
28
|
71
71
71
|
1450
|
22
|
3.5
|
365
|
ISWR150-250I
|
120
200
240
|
33.3
55.6
66.7
|
87
80
72
|
65
76
74
|
2900
|
75
|
4.5
|
702
|
ISWR150-250IA
|
112
187
224
|
31.1
51.9
62.2
|
76
70
63
|
64
75
73
|
2900
|
55
|
4.5
|
451
|
ISWR150-250IB
|
104
173
208
|
28.9
48.1
57.8
|
65
60
54
|
63
74
72
|
2900
|
45
|
4.5
|
460
|
ISWR150-315I
|
120
200
240
|
33.3
55.6
66.7
|
133
125
120
|
58
72
75
|
2900
|
110
|
4.5
|
980
|
ISWR150-315IA
|
112
187
224
|
31.1
51.9
62.2
|
116
110
105
|
57
72
74
|
2900
|
90
|
4.5
|
800
|
ISWR200-315IB
|
104
173
208
|
28.9
48.1
57.8
|
100
95
91
|
55
70
72
|
2900
|
75
|
4.5
|
724
|
ISWR200-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
3.0
|
265
|
ISWR200-200A
|
125
179
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
3.0
|
244
|
ISWR200-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
3.0
|
305
|
ISWR200-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
3.0
|
267
|
ISWR200-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
76
76
|
1450
|
11
|
3.0
|
246
|
ISWR200-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
78
|
1450
|
30
|
3.5
|
417
|
ISWR200-315A
|
131
189
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
3.5
|
342
|
ISWR200-315B
|
121
173
225
|
33.6
48.1
62.5
|
25
24
21
|
76
76
76
|
1450
|
18.5
|
3.5
|
322
|
ISWR200-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
3.5
|
498
|
ISWR200-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
3.5
|
462
|
ISWR200-400B
|
122
174
226.5
|
33.9
48.6
62.9
|
44
38
33
|
73
73
73
|
1450
|
30
|
3.5
|
443
|
ISWR200-400C
|
112
160
208
|
31.3
44.4
57.8
|
34
32
28
|
71
71
71
|
1450
|
22
|
3.5
|
373
|
ISWR200-200I
|
280
400
520
|
77.8
111.1
144
|
13.4
12.5
10.5
|
70
80
79
|
1450
|
22
|
4.0
|
382
|
ISWR200-200IA
|
250
358
465
|
69.4
99.4
129.2
|
10.7
10
8.5
|
68
78
77
|
1450
|
18.5
|
4.0
|
346
|
ISWR200-250I
|
280
400
520
|
77.8
111.4
144
|
22.2
20
14
|
75
80
72
|
1450
|
30
|
4.0
|
475
|
ISWR200-250IA
|
250
358
465
|
69.4
99.4
129.2
|
18
16
11.2
|
73
78
70
|
1450
|
22
|
4.0
|
405
|
ISWR200-250IB
|
226
322
419
|
62.8
89.4
116.4
|
14.4
13
7.3
|
70
75
67
|
1450
|
18.5
|
4.0
|
387
|
ISWR200-315I
|
280
440
520
|
77.8
111.4
144
|
36
32
26
|
73
80
75
|
1450
|
55
|
4.0
|
675
|
ISWR200-315IA
|
262
374
482
|
72.8
103.9
135
|
31.5
28
23
|
72
79
74
|
1450
|
45
|
4.0
|
560
|
ISWR200-315IB
|
242
346
450
|
67.2
96.1
125
|
27
24
19.5
|
78
78
78
|
1450
|
37
|
4.0
|
535
|
ISWR200-400I
|
280
400
520
|
77.8
111.4
144
|
54.5
50
39
|
75
81
77
|
1450
|
75
|
4.0
|
830
|
ISWR200-400IA
|
262
374
486
|
72.8
103.9
135
|
48
44
34
|
80
80
80
|
1450
|
75
|
4.0
|
830
|
ISWR200-400IB
|
242
346
450
|
67.2
96.1
125
|
41.4
38
29.6
|
78
78
78
|
1450
|
55
|
5.0
|
685
|
ISWR200-400IC
|
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
76
76
76
|
1450
|
45
|
5.0
|
580
|
ISWR250-250
|
350
550
650
|
97.2
152.8
180.5
|
22
20
16
|
78
82
81
|
1450
|
45
|
5.0
|
620
|
ISWR250-250A
|
300
500
600
|
83.3
139
166.7
|
18.3
17
14
|
76
80
80
|
1450
|
37
|
5.0
|
550
|
ISWR250-235
|
300
500
600
|
83.3
139
166.7
|
14
12.5
11
|
73
78
70
|
1450
|
22
|
4.5
|
410
|
ISWR250-300
|
300
500
600
|
83.3
139
166.7
|
22
20
16
|
78
78
78
|
1450
|
37
|
4.5
|
550
|
ISWR250-315
|
350
550
650
|
97.2
152.8
180.5
|
34
32
28
|
76
80
79
|
1450
|
75
|
5.5
|
890
|
ISWR250-315A
|
300
500
600
|
83.3
139
166.7
|
29.5
28
24
|
74
78
77
|
1450
|
55
|
5.5
|
690
|
ISWR250-315B
|
260
450
520
|
72.2
125
144.4
|
25
24
20
|
70
74
72
|
1450
|
45
|
5.5
|
620
|
ISWR250-400
|
300
500
600
|
83.3
139
166.7
|
54.5
50
39
|
72
72
72
|
1480
|
90
|
4.5
|
1530
|
ISWR300-235
|
480
720
900
|
133.3
200
250
|
20
18
15.5
|
77
81
74
|
970
|
55
|
5.0
|
1120
|
ISWR300-235A
|
438
607
821
|
121.7
182.5
228.1
|
16.5
15
13
|
75
79
72
|
970
|
45
|
5.0
|
1030
|
ISWR300-235B
|
400
600
750
|
111.1
167.0
208.3
|
14
12.5
11
|
73
77
70
|
970
|
37
|
5.0
|
890
|
ISWR300-300
|
480
720
900
|
133.3
200
250
|
31
28
25
|
77
81
77
|
970
|
75
|
5.0
|
1350
|
ISWR300-300A
|
444
666
833
|
123.3
185
231.4
|
26.5
24
21.5
|
76
80
76
|
970
|
75
|
5.0
|
1350
|
ISWR300-300B
|
415
623
779
|
115.3
173.1
261.4
|
23
21
18.5
|
79
79
79
|
970
|
55
|
5.0
|
1170
|
ISWR300-380
|
480
720
900
|
133.3
200
250
|
48
44
34
|
84
84
84
|
970
|
132
|
5.0
|
1900
|
ISWR300-380A
|
444
666
833
|
123.3
185
231.4
|
41.4
38
30
|
80
80
80
|
970
|
110
|
5.0
|
1700
|
ISWR300-380B
|
409
614
767
|
113.6
170.6
213.1
|
35
32
25
|
78
78
78
|
970
|
90
|
5.0
|
1530
|
ISWR300-235I
|
718
1080
1345
|
199.4
300
373.6
|
44.6
40
34.6
|
82
82
82
|
1450
|
160
|
5.5
|
1680
|
ISWR300-235IA
|
642
965
1203
|
178.3
268.1
334.2
|
35.7
32
27.7
|
80
80
80
|
1450
|
132
|
5.5
|
1440
|
ISWR200-315I
|
280
440
520
|
77.8
111.4
144
|
36
32
26
|
73
80
75
|
1450
|
55
|
4.0
|
675
|
ISWR200-315IA
|
262
374
482
|
72.8
103.9
135
|
31.5
28
23
|
72
79
74
|
1450
|
45
|
4.0
|
560
|
ISWR200-315IB
|
242
346
450
|
67.2
96.1
125
|
27
24
19.5
|
78
78
78
|
1450
|
37
|
4.0
|
535
|
ISWR200-400I
|
280
400
520
|
77.8
111.4
144
, , |
54.5
50
39
|
75
81
77
|
1450
|
75
|
4.0
|
830
|
ISWR200-400IA
|
262
374
486
|
72.8
103.9
135
|
48
44
34
|
80
80
80
|
1450
|
75
|
4.0
|
830
|
ISWR200-400IB
|
242
346
450
|
67.2
96.1
125
|
41.4
38
29.6
|
78
78
78
|
1450
|
55
|
5.0
|
685
|
ISWR200-400IC
|
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
76
76
76
|
1450
|
45
|
5.0
|
580
|
ISWR250-250
|
350
550
650
|
97.2
152.8
180.5
|
22
20
16
|
78
82
81
|
1450
|
45
|
5.0
|
620
|
ISWR250-250A
|
300
500
600
|
83.3
139
166.7
|
18.3
17
14
|
76
80
80
|
1450
|
37
|
5.0
|
550
|
ISWR250-235
|
300
500
600
|
83.3
139
166.7
|
14
12.5
11
|
73
78
70
|
1480
|
22
|
4.5
|
410
|
ISWR250-300
|
300
500
600
|
83.3
139
166.7
|
22
20
16
|
78
78
78
|
1480
|
37
|
4.5
|
550
|
ISWR250-315
|
350
550
650
|
97.2
152.8
180.5
|
34
32
28
|
76
80
79
|
1450
|
75
|
5.5
|
890
|
ISWR250-315A
|
300
500
600
|
83.3
139
166.7
|
29.5
28
24
|
74
78
77
|
1450
|
55
|
5.5
|
690
|
ISWR250-315B
|
260
450
520
|
72.2
125
144.4
|
25
24
20
|
70
74
72
|
1450
|
45
|
5.5
|
620
|
ISWR250-400
|
300
500
600
|
83.3
139
166.7
|
54.5
50
39
|
72
72
72
|
1480
|
90
|
4.5
|
1530
|
ISWR250-235
|
480
720
900
|
133.3
200
250
|
20
18
15.5
|
77
81
74
|
970
|
55
|
5.0
|
1120
|
ISWR250-235A
|
438
607
821
|
121.7
182.5
228.1
|
16.5
15
13
|
75
79
72
|
970
|
45
|
5.0
|
1030
|
ISWR250-235B
|
400
600
750
|
111.1
167.0
208.3
|
14
12.5
11
|
73
77
70
|
970
|
37
|
5.0
|
890
|
ISWR300-300
|
480
720
900
|
133.3
200
250
|
31
28
25
|
77
81
77
|
970
|
75
|
5.0
|
1350
|
ISWR300-300A
|
444
666
833
|
123.3
185
231.4
|
26.5
24
21.5
|
76
80
76
|
970
|
75
|
5.0
|
1350
|
ISWR300-300B
|
415
623
779
|
115.3
173.1
261.4
|
23
21
18.5
|
79
79
79
|
970
|
55
|
5.0
|
1170
|
ISWR300-380
|
480
720
900
|
133.3
200
250
|
48
44
34
|
84
84
84
|
970
|
132
|
5.0
|
1900
|
ISWR300-380A
|
444
666
833
|
123.3
185
231.4
|
41.4
38
30
|
80
80
80
|
970
|
110
|
5.0
|
1700
|
ISWR300-380B
|
409
614
767
|
113.6
170.6
213.1
|
35
32
25
|
78
78
78
|
970
|
90
|
5.0
|
1530
|
ISWR300-235I
|
718
1080
1345
|
199.4
300
373.6
|
44.6
40
34.6
|
82
82
82
|
970
|
160
|
5.5
|
1680
|
ISWR300-235IA
|
642
965
1203
|
178.3
268.1
334.2
|
35.7
32
27.7
|
80
80
80
|
970
|
132
|
5.5
|
1440
|
|
訂貨請盡量提供:
1.型號2.口徑3.揚程4.流量5.電機功率(KW)6.轉速(R/min)7.材質是否帶附件8.電壓(V)
感謝您訪問我們永嘉泉達的網站【www.fxbykc.com】如有任何水泵疑問.您可以致電給我們,電話:0577-66999097、66999098,我們將會(huì )盡力為您服務。
相關產品:
SGB立式防爆管道泵 IHGB立式不銹鋼防爆管道離心泵 SG管道增壓泵 SGR立式熱水管道泵 ISWR臥式熱水管道泵
GW管道排污泵 ISWH臥式不銹鋼管道離心泵 CDLF不銹鋼立式多級管道泵 SGP立式不銹鋼管道泵 YG防爆管道離心泵
ISWB防爆管道離心泵 GDL立式多級管道泵 IHG不銹鋼管道泵 ISG管道離心泵 SGR熱水管道泵
